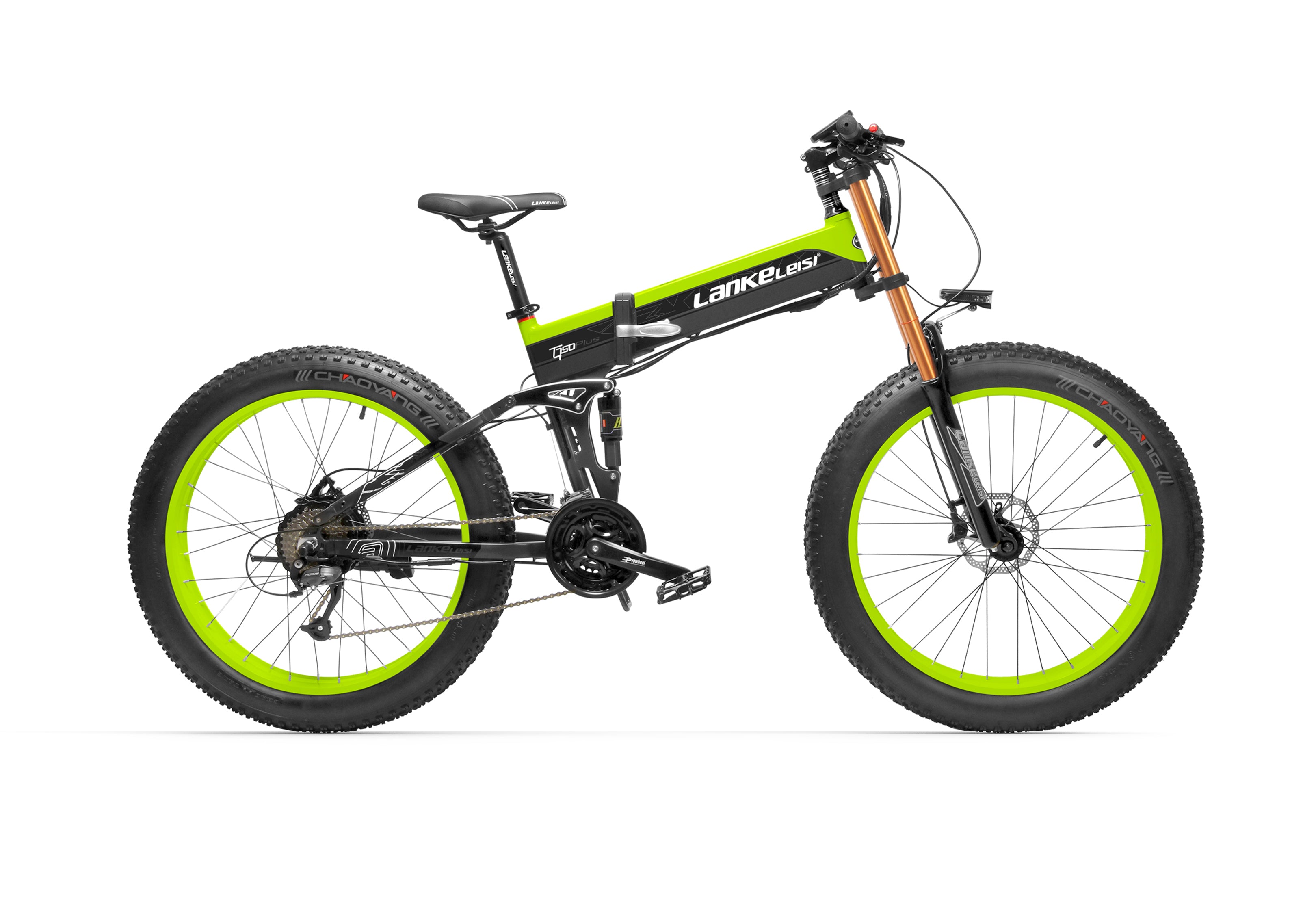

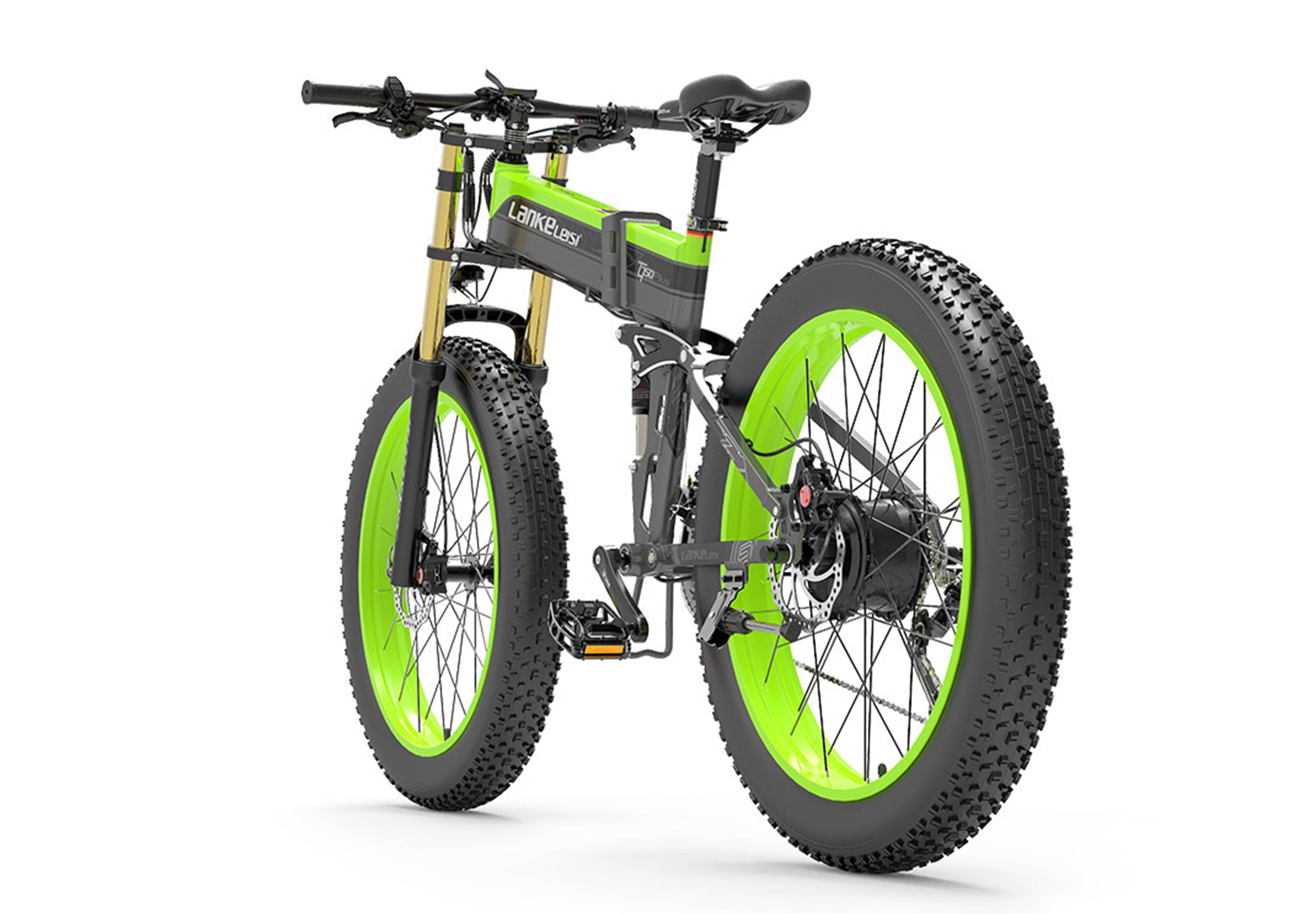

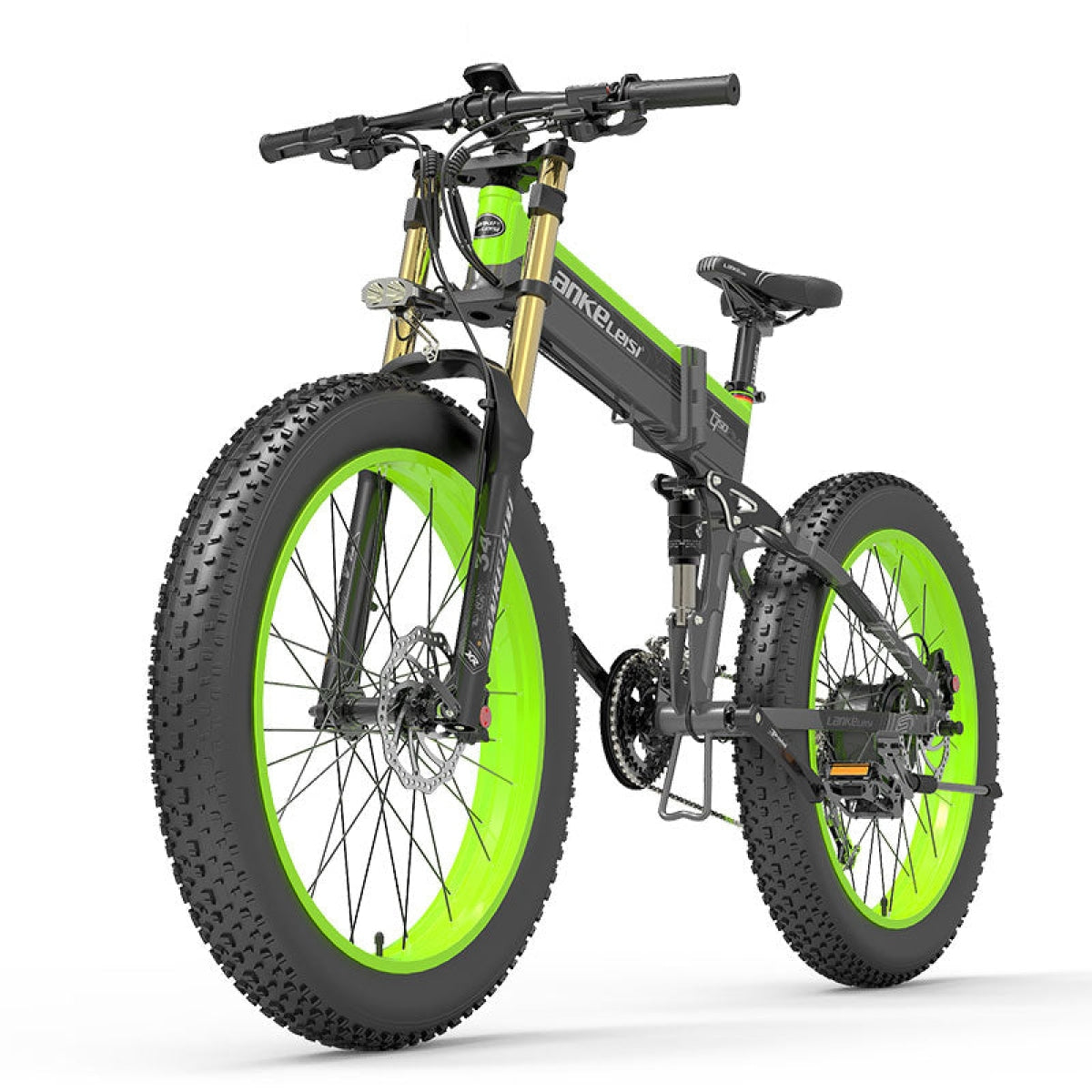

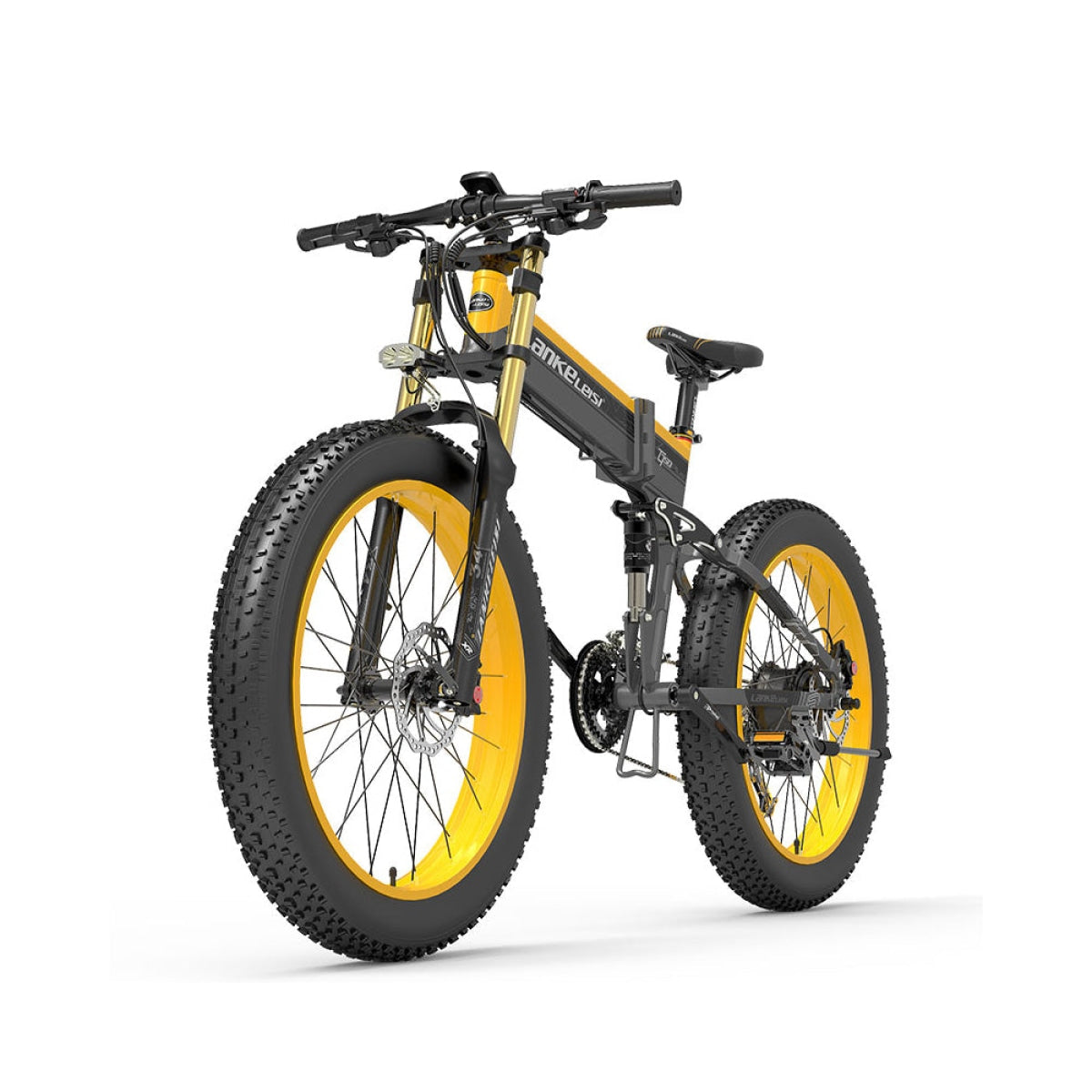

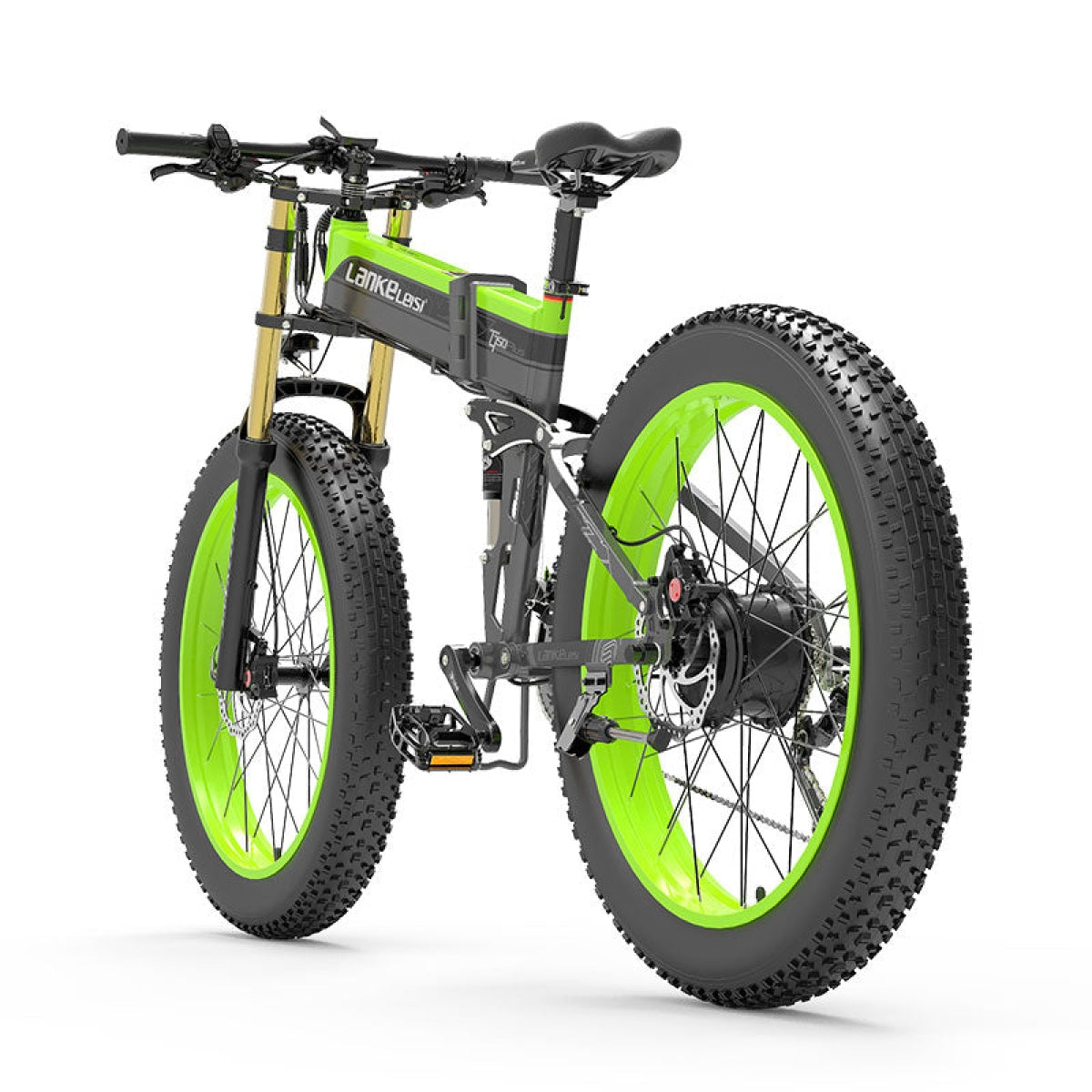

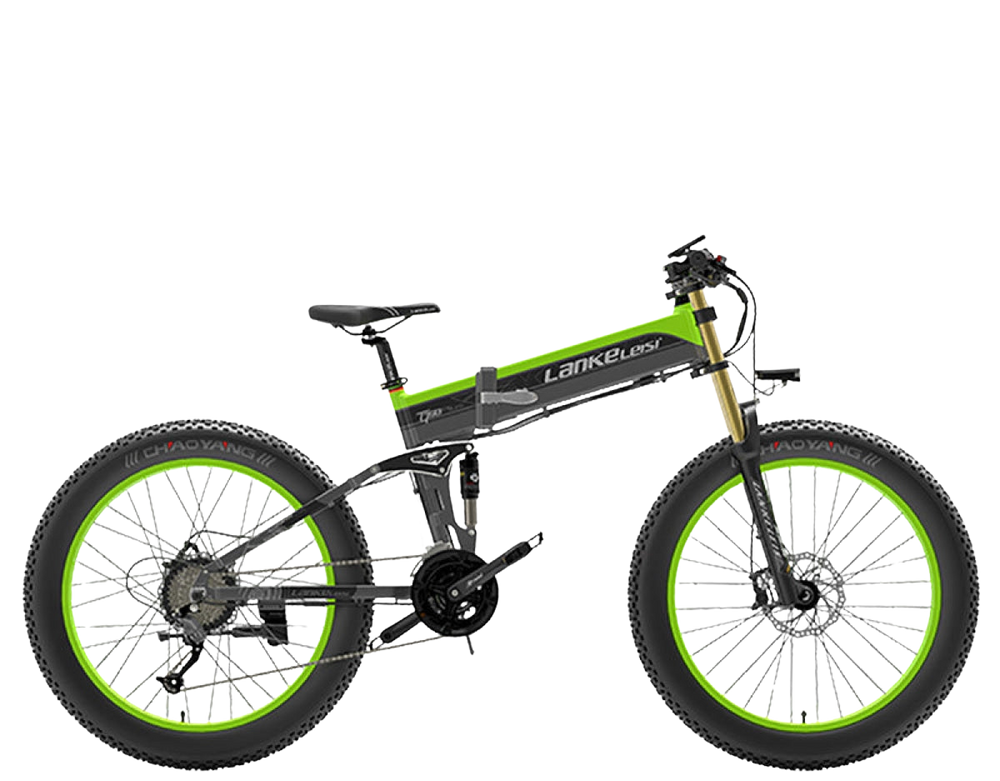

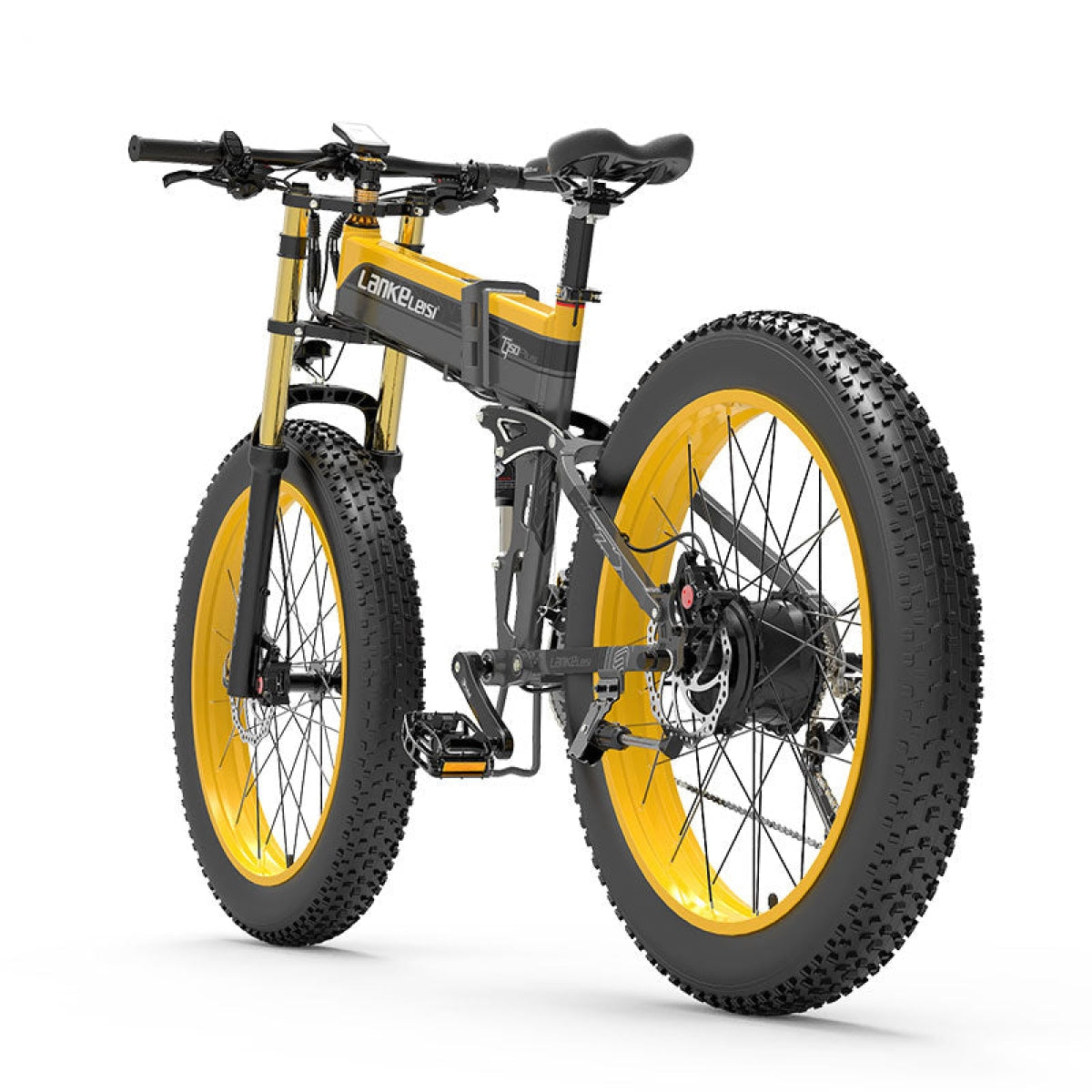

LANKELEISI XT750 PLUS BIG FORK Fat Tire Electric Mountain Bike

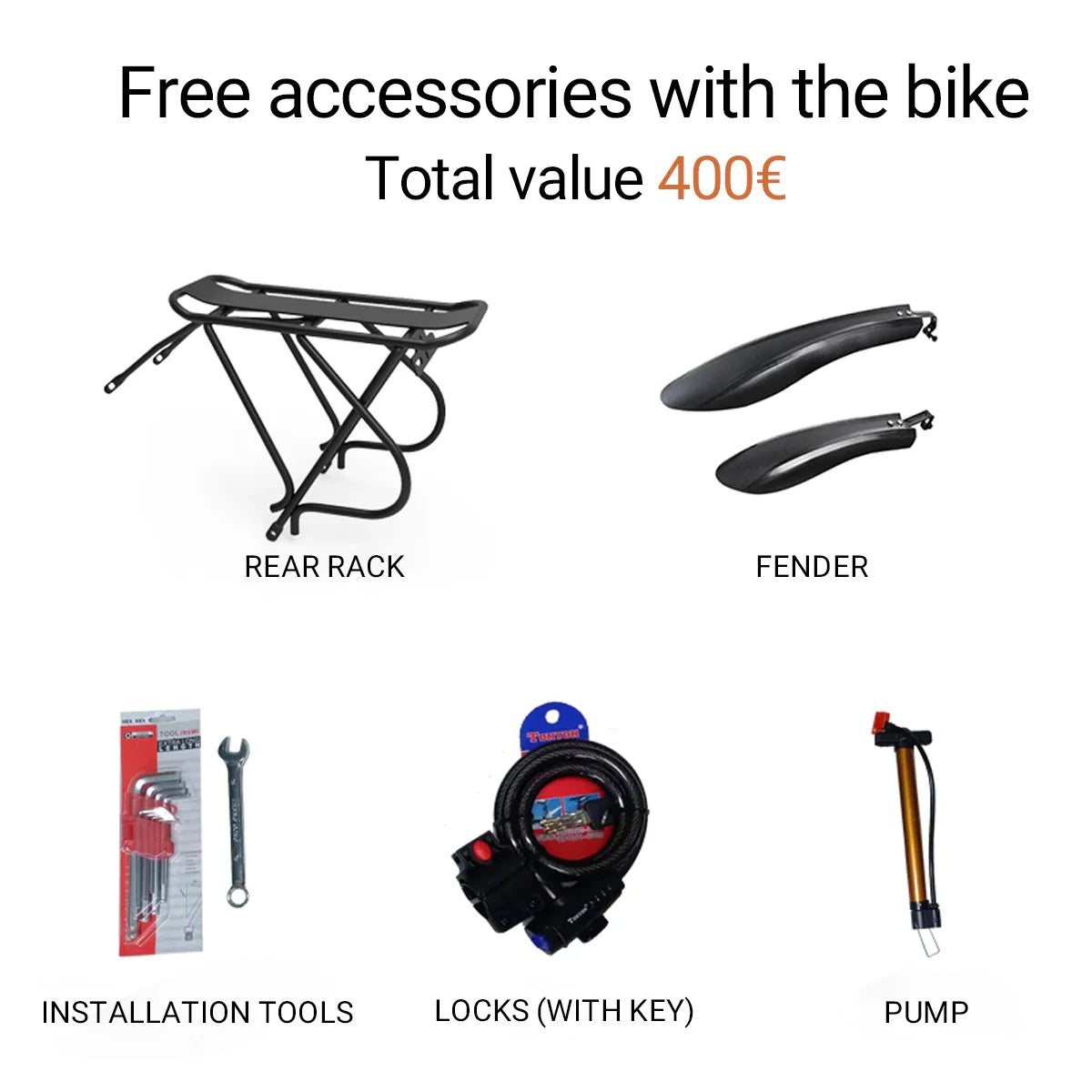

Compatible accessories
For shipping times, warranty, shipping and return policies, please see the corresponding policies in the footer of the website.

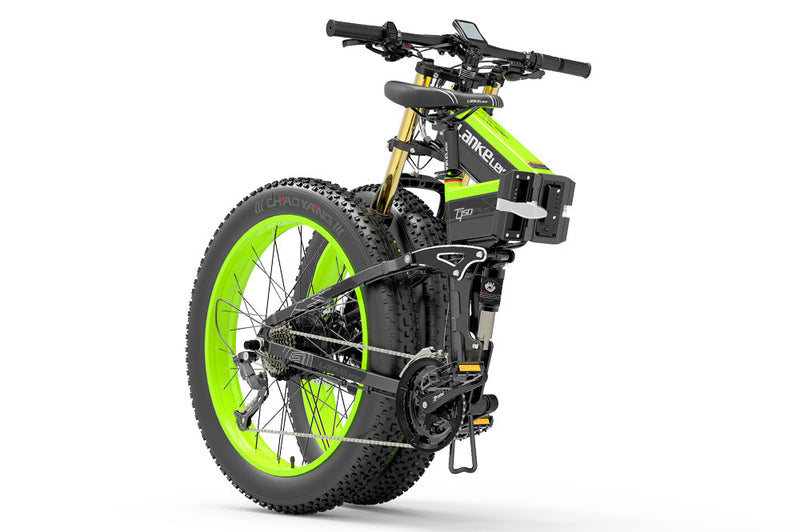

Foldable all-terrain electric bike
Lankeleisi XT750 PLUS is equipped with a 48V 1000W motor and 26*4.0 wide tires, allowing you to comfortably traverse rough roads. Removable 48V 17.5Ah large-capacity battery, with a range of 60KM in electric mode, and 120KM in pedal-assisted mode. Foldable design Convenient for storage and transportation, with 15S quick folding, it is easy to carry when hiking outdoors.
XT750Plus Parameters
Specifications
FRAMES | ||
---|---|---|
Frame | 6061 aluminum alloy full suspension frame | |

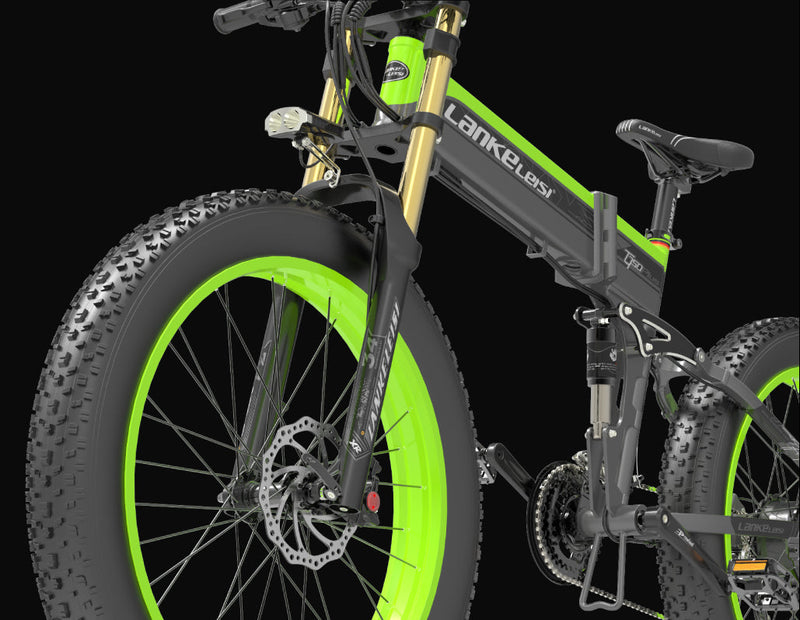

Fork | Large size front fork with oil spring suspension and locking aluminum shoulder | |
Handelbar Sets | Aluminum alloy 6061, 31.8*650mm | |
Cranks | Aluminum alloy crank square hole 24-34-42T | |
Rim | Aluminum alloy rims | |

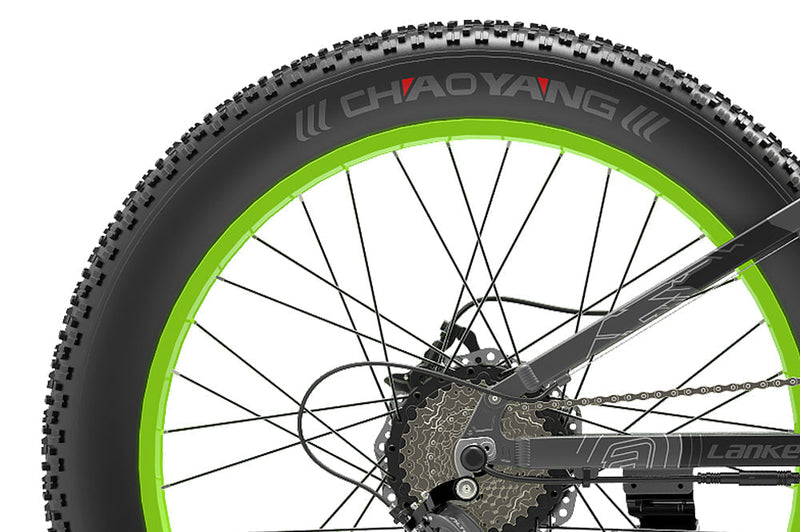

Tire | CHAOYANG 26*4.0 | |
ELECTRONIC | ||

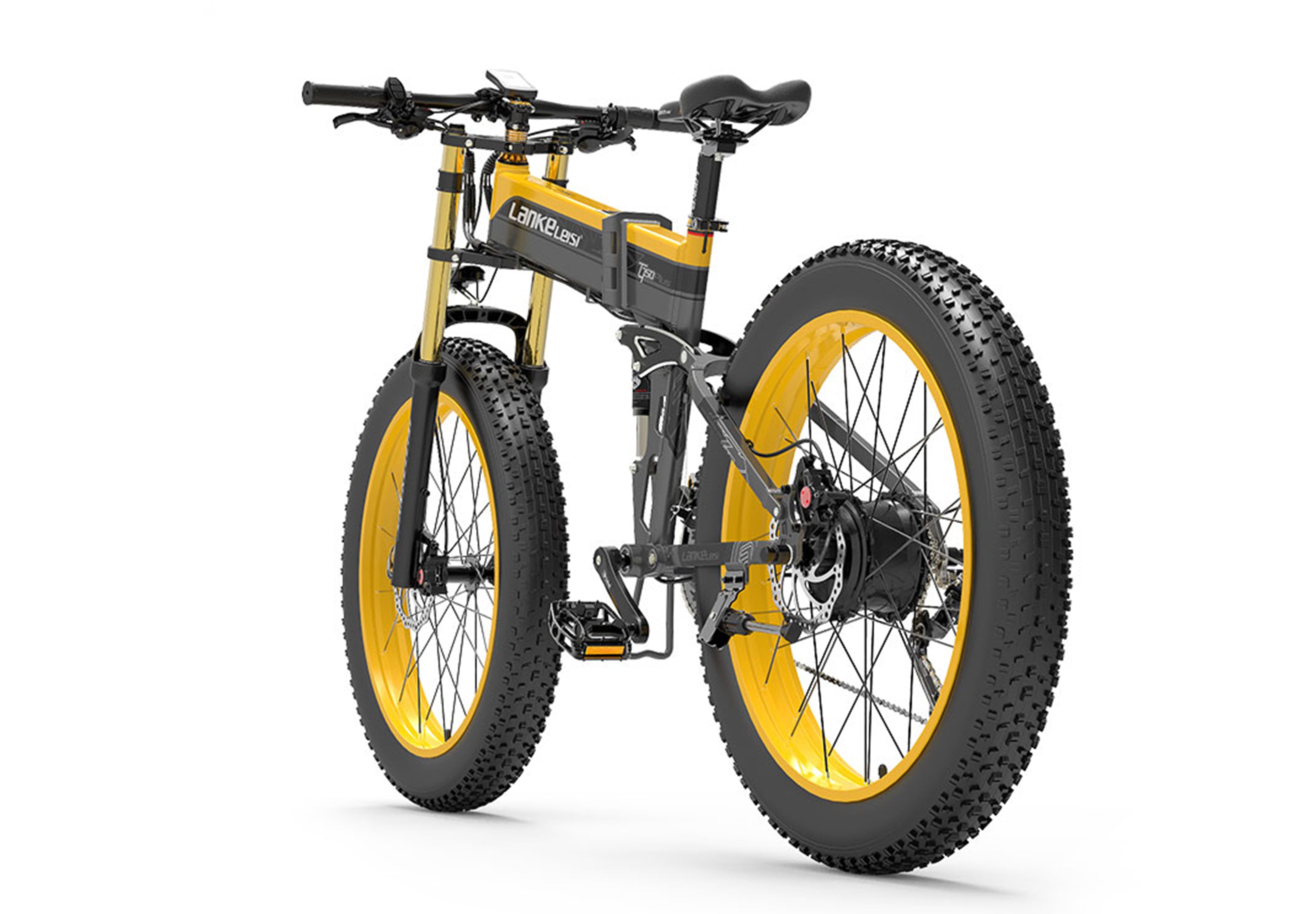

Engine | 48v 1000w rear drive brushless motor, max torque 95Nm | |

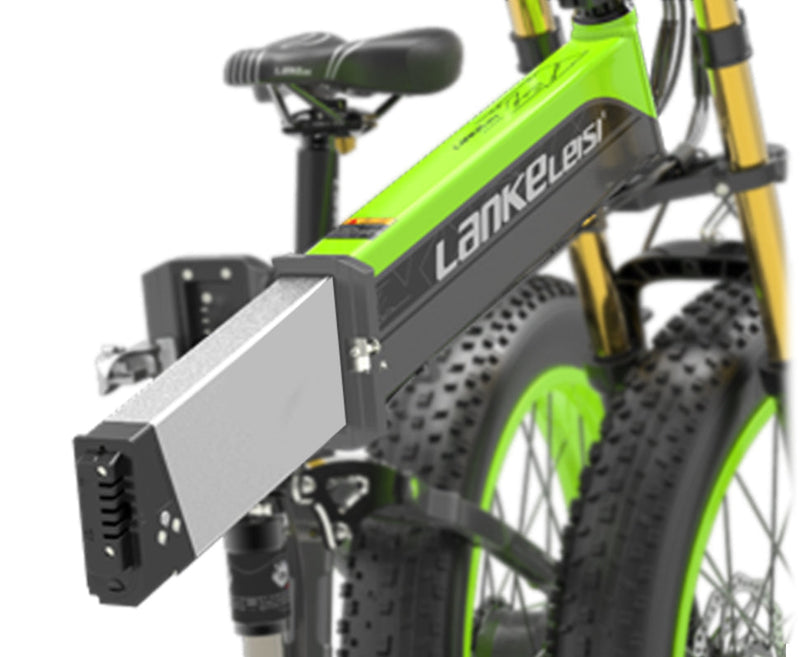

Battery | 48V 17.5AH lithium battery | |
Electric assistance sensor | Holzer High Current 12-Point Speed Sensor | |

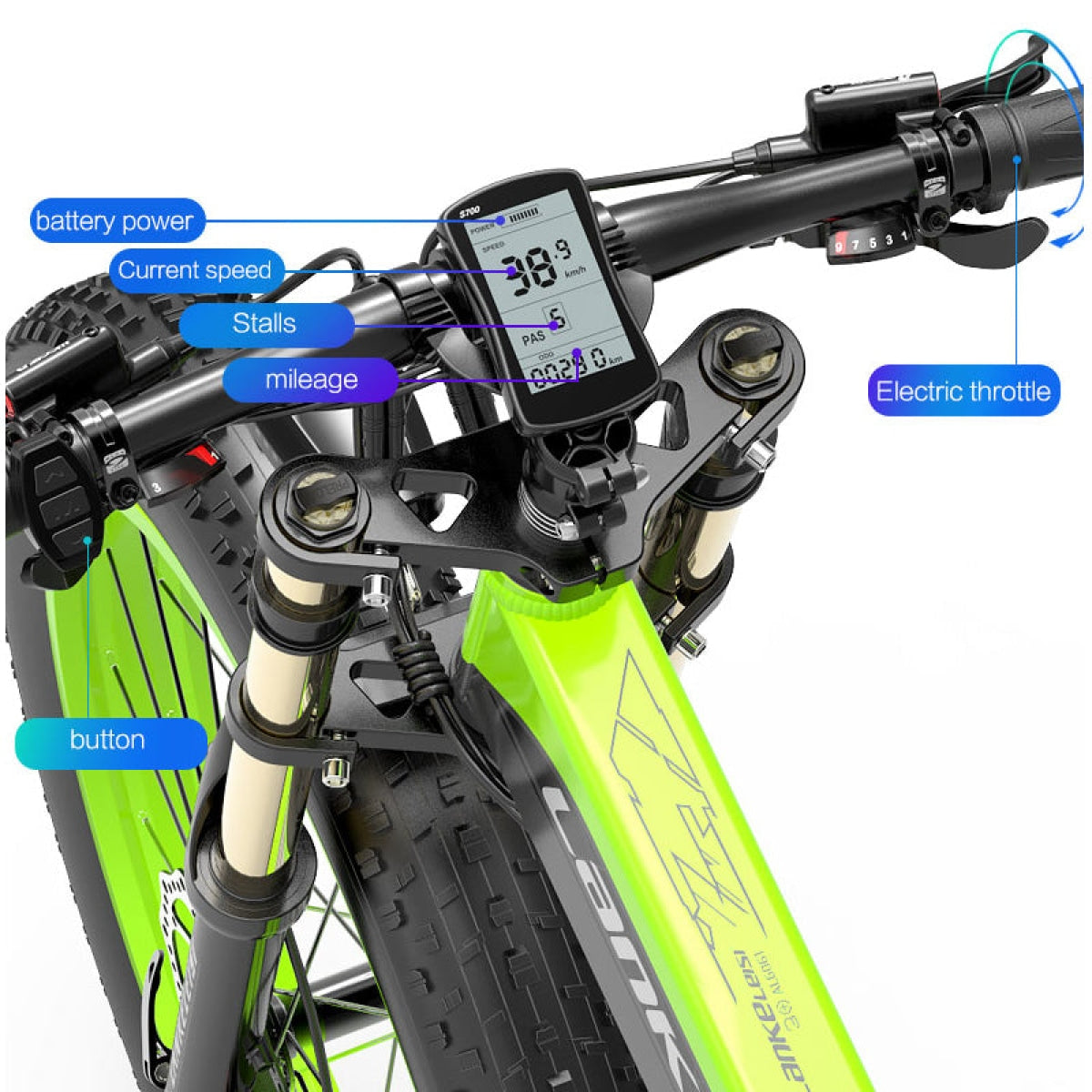

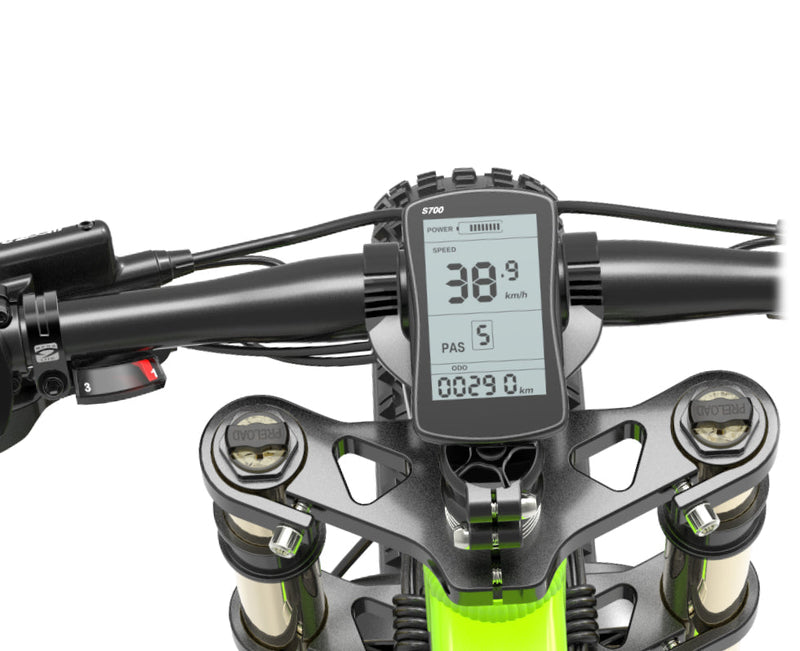

LCD screen | S700 LCD indicator with speed, trip, battery, assistance level, etc. | |

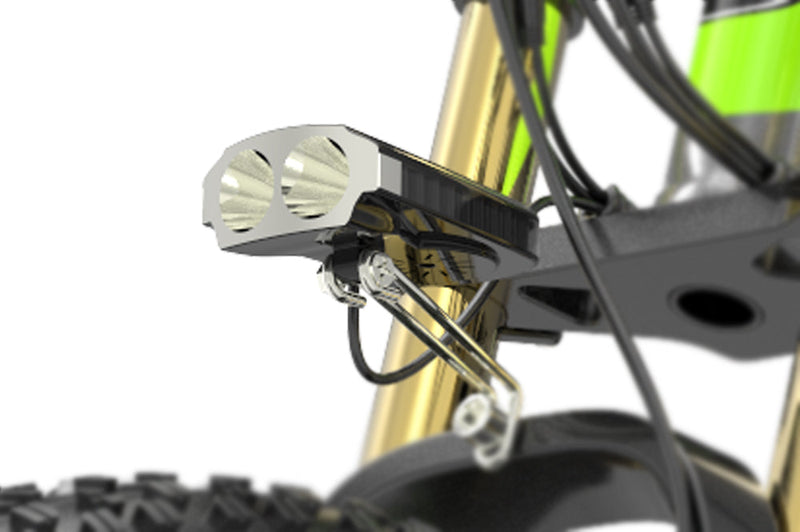

Front light | High brightness 48V LED headlights | |
Charger | 48V 3A charger | |

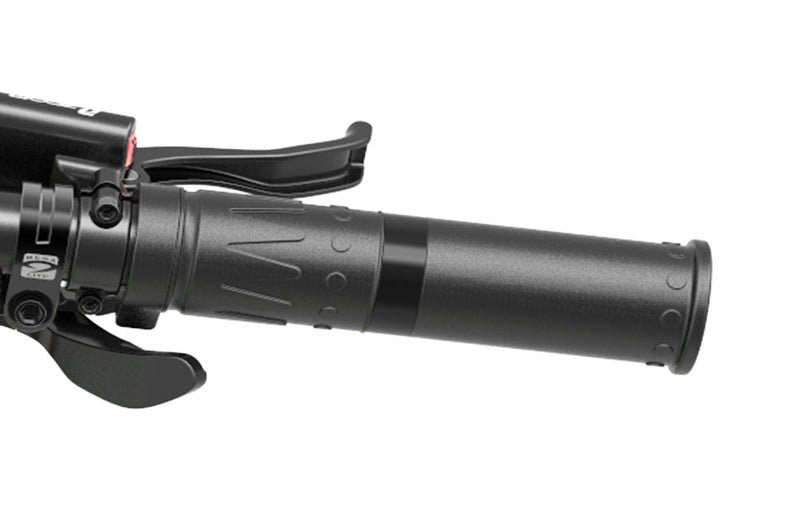

Accelerator | Half twist | |
Waterproof level | IP54 (waterproof for daily use, suitable for use in the rain) | |
SPEED AND RANGE | Tested driving conditions: After being fully charged, the load is 60kg, the temperature is 25℃, and the test is carried out at 20km/h. The actual measurement is the average speed on a flat road. | |
Pure electric mode | 50-60 km | |
Pedal assist mode | 100-120KM | |
Gear systems | ||
Variable speed | 27 speed | |

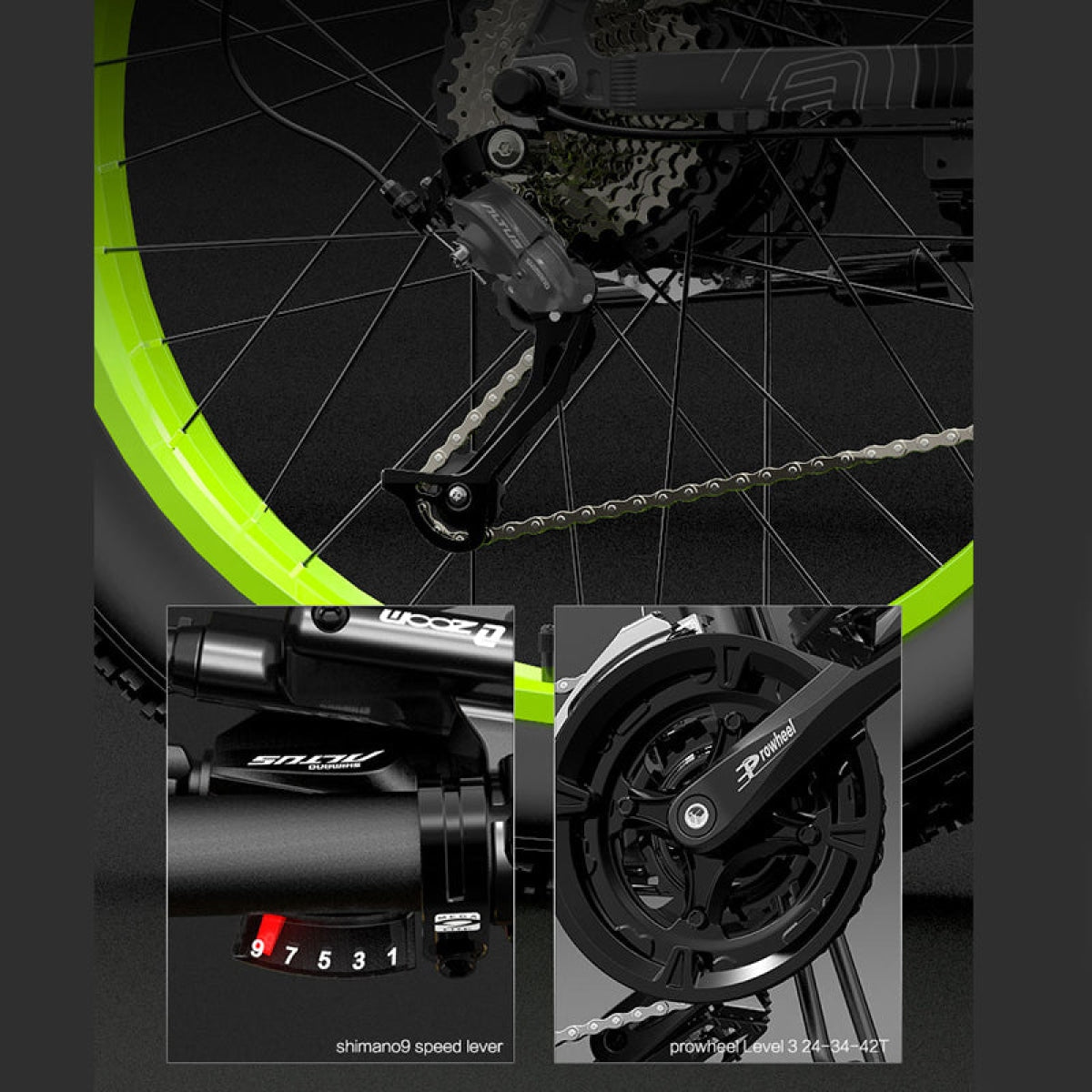

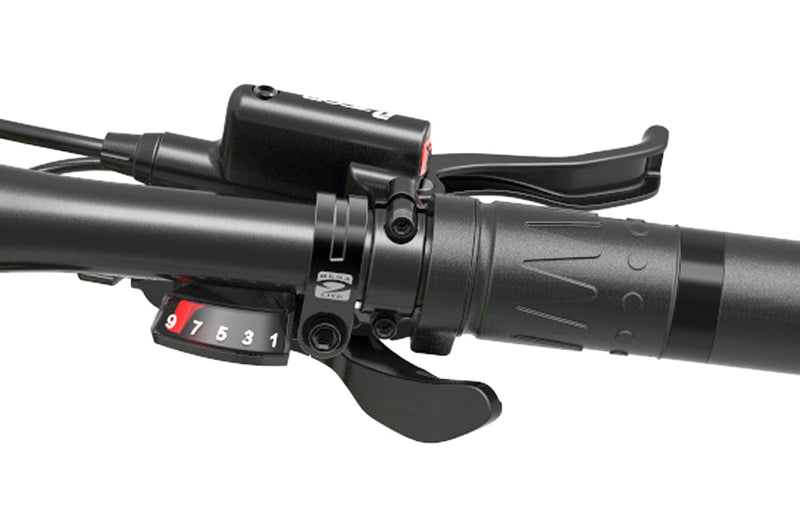

Gear shift lever | Shimano 2010 | |
Rear derailleur | Shimano M370 | |
Front Derailleur | KANGYUE | |
Chain | KMC 9s | |
BRAKE | ||

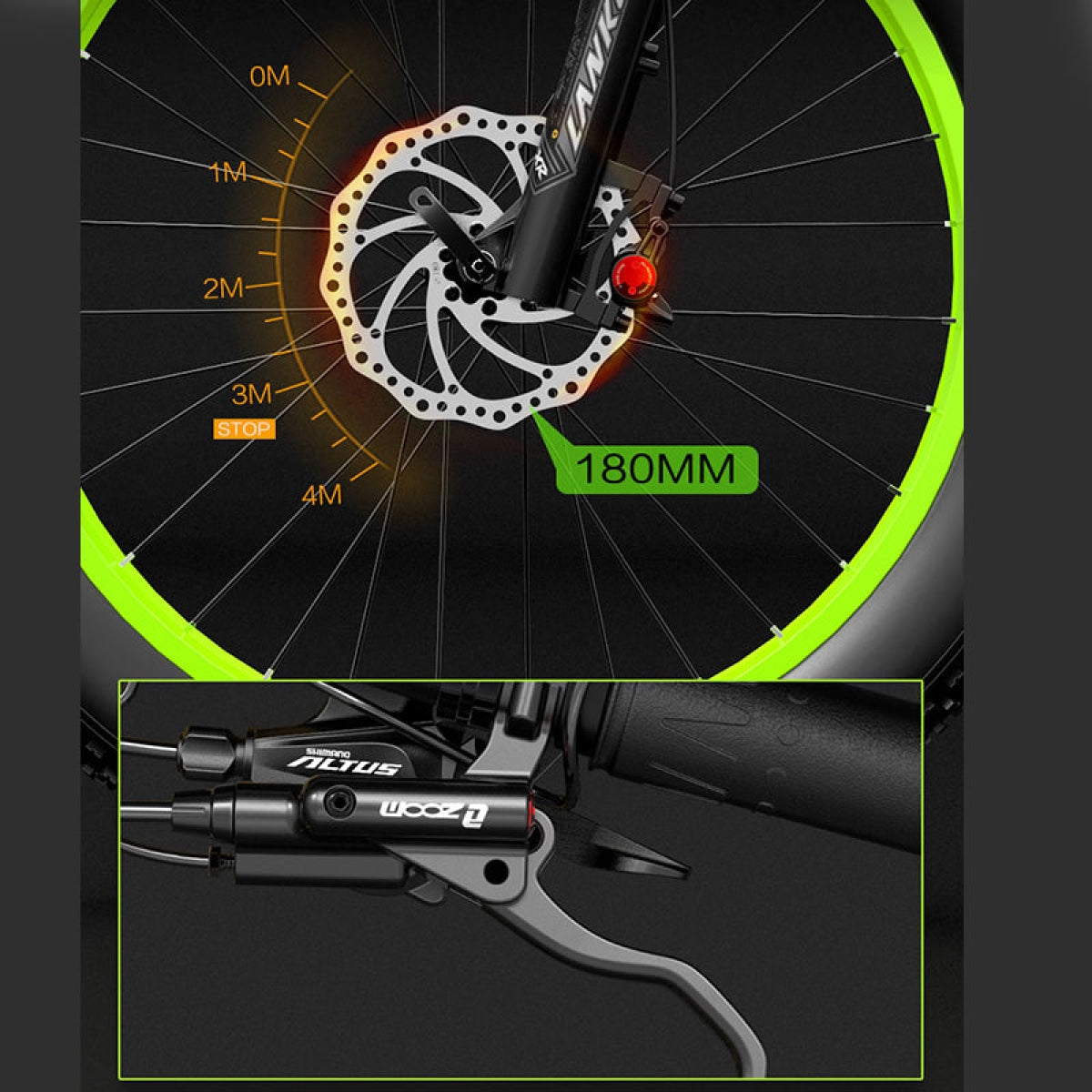

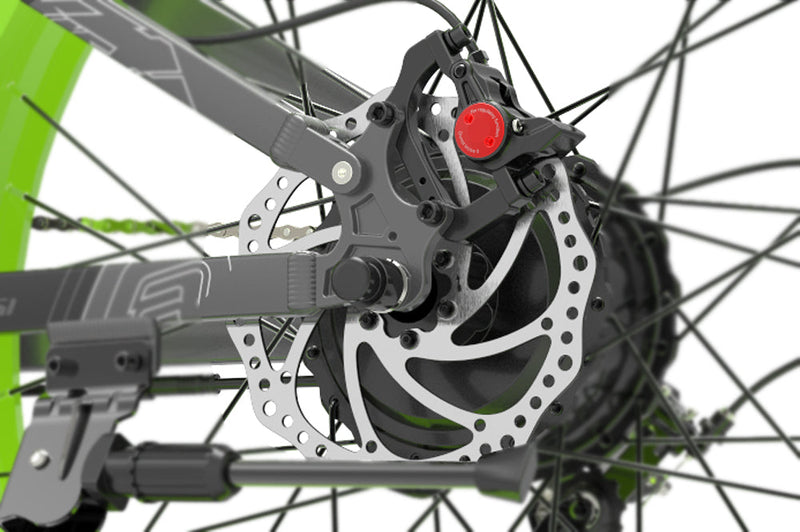

Brake | ZOOM H875 Low Power Hydraulic Disc Brake | |
WEIGHT AND LOAD | ||
Bike weight | 28.5KG (62.83lbs) | |
Maximum load of the bicycle | 180KG(400lbs) |

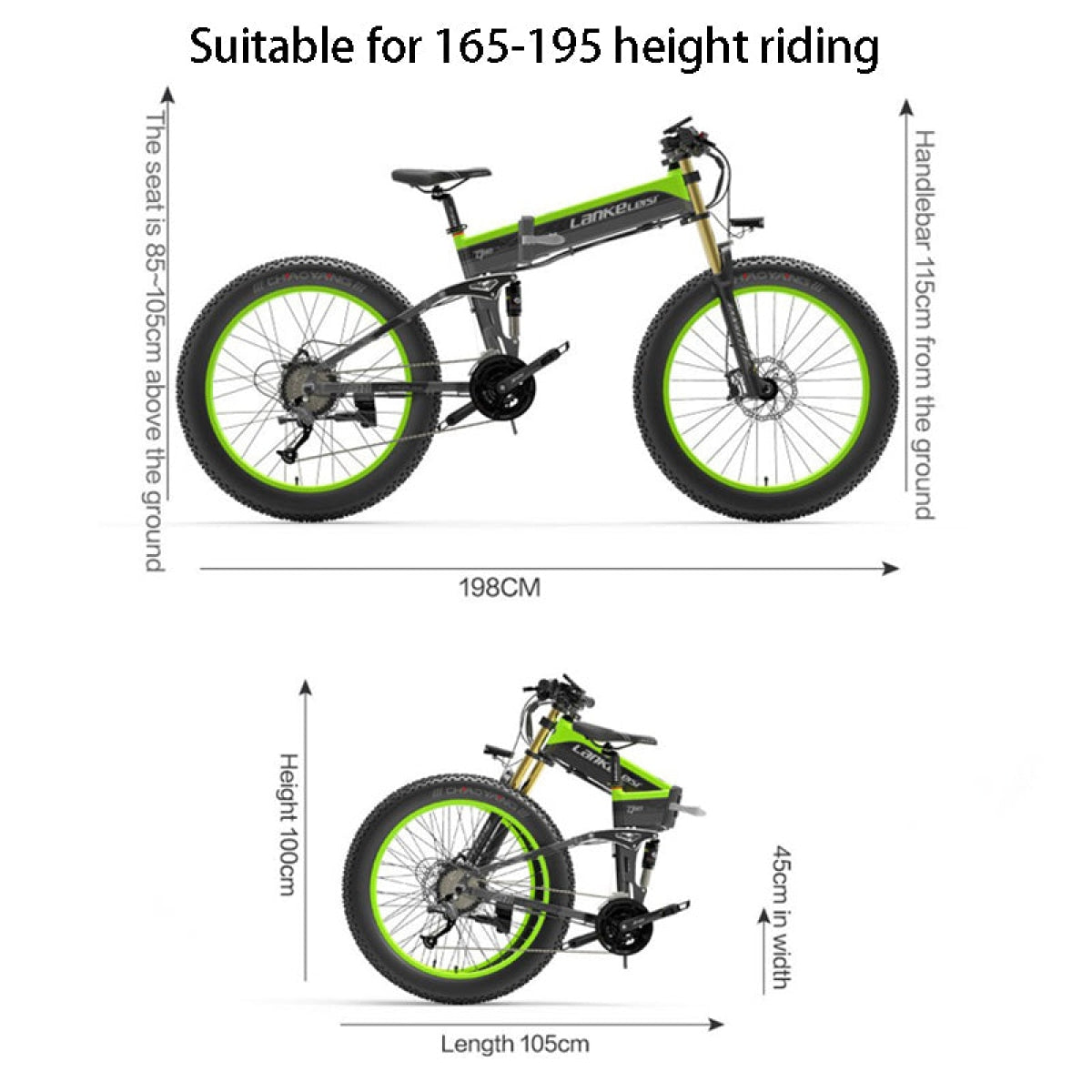

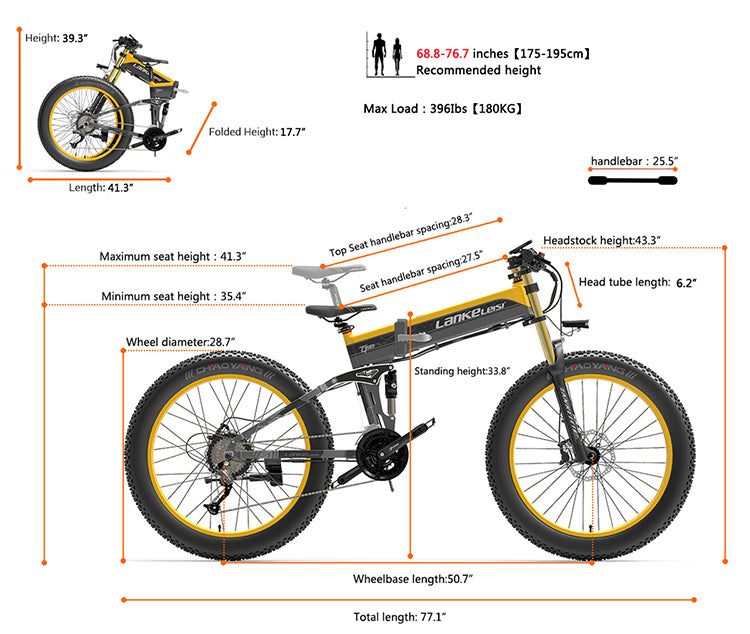

Geometry
What's in the box?
CE Certification
FAQs
How long does it take to receive my electric bike?
If it is in stock, lankeleisi staff will arrange delivery for you as soon as possible. The product is expected to arrive at the warehouse within 5-7 business days.
What is the proper height for the XT750Plus?
The XT750Plus is suitable for riders between 175 and 195 cm tall.
